Step 20: Exhaust Manifold.

1: As I'm using the 3L head, my exhaust manifold gasket is different from the 2L head, so I have to use the old one. In the image below, you'll see the difference. I can relocate the studs, but meh.
Anyhoo, place the gasket onto the studs.

Download Full Size Image

Posted Image

2: Place the exhaust manifold onto the studs and tighten the nuts and bolts.

Download Full Size Image

Posted Image

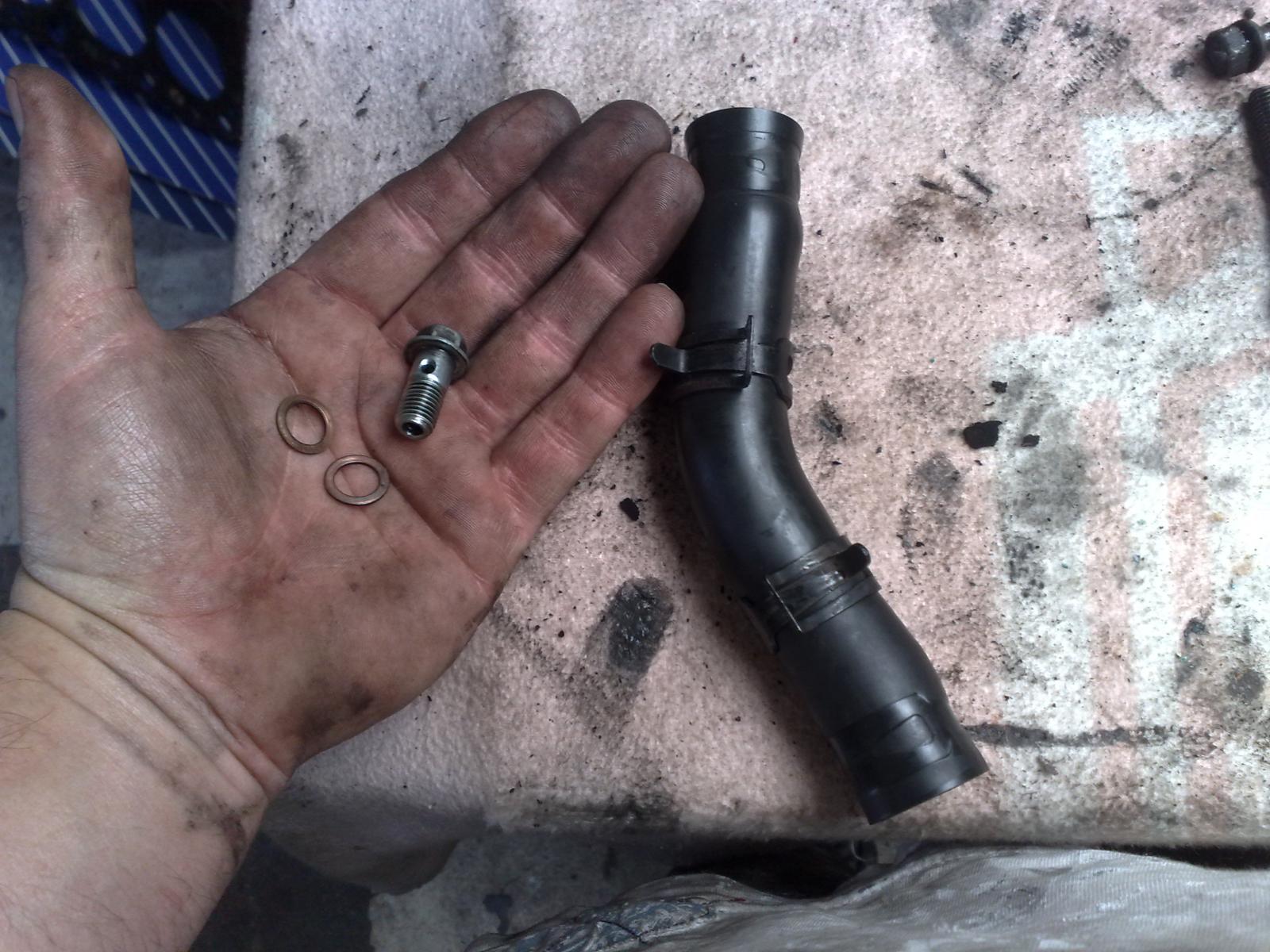

3: Shown in the image below are the oil return and feed parts.

Download Full Size Image

Posted Image

4: Slip the return hose between the turbo and the block, then clamp.
Place the banjo bolt onto the feed line with a copper washer on each side of the conntector. Again, don't be stingy and buy new copper washers.

Download Full Size Image

Posted Image

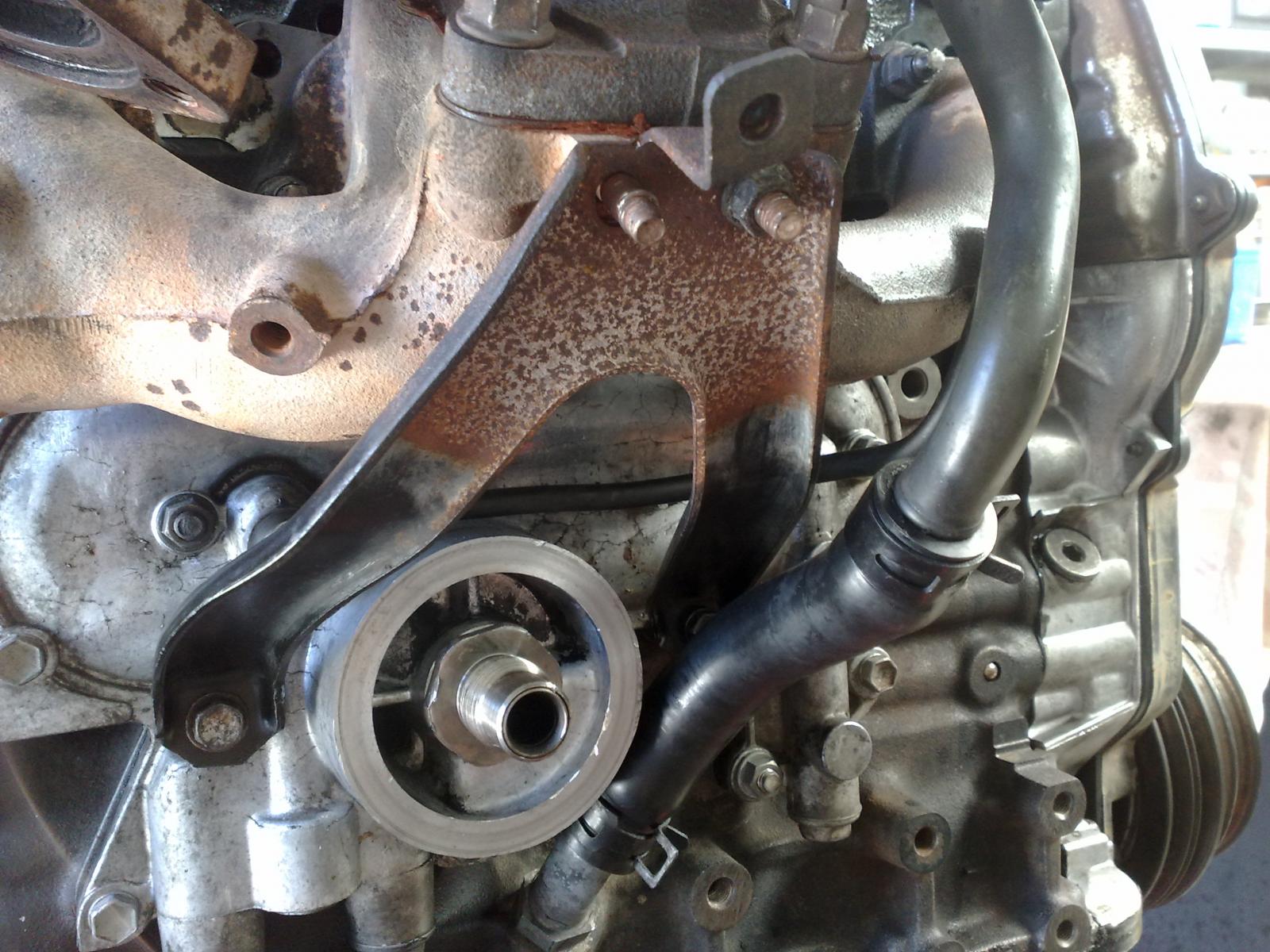

5: Fit the brace and tighten the 2 nuts and 2 bolts.

Download Full Size Image

Posted Image

Posted Image


#22
2LV8ETR

2LV8ETR

    Grampa Spec Cockhead

  • Vice President
  • 3017 posts
  • Real Name:Allen
  • LocationArmadale WA
  • Car(s):RB30DET R32 Gts-t Sedan, Hilux SSR-G Surf 4x4
  • Bike(s):Hyosung GT250-R, My wife...
Step 21: Vacuum Pump Return.

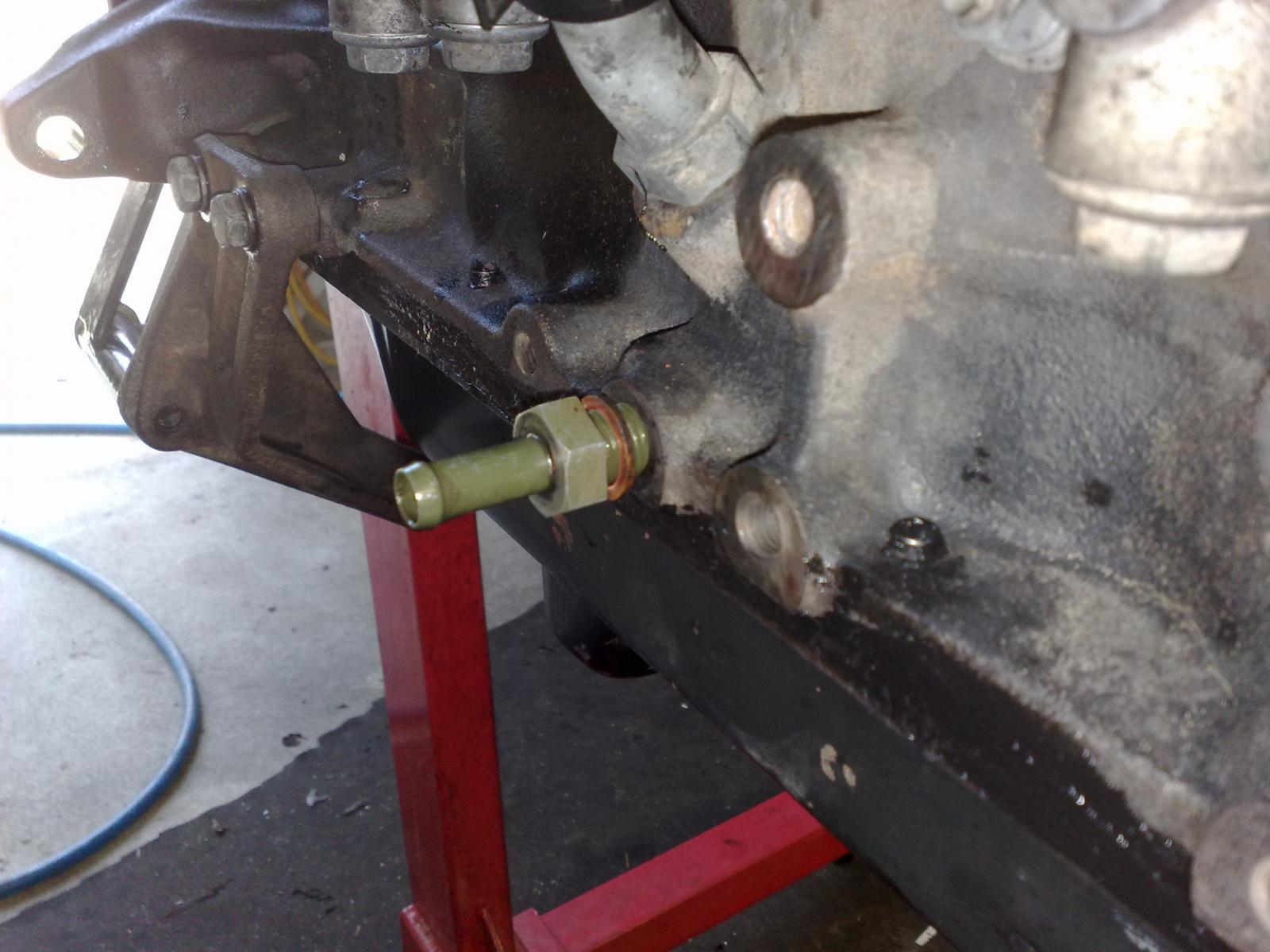

1: Locate and fit the vacuum pump oil return spigot. I may sound like a broken record here, but buy a new copper washer!

Download Full Size Image

Posted Image

Posted Image


#23
2LV8ETR

2LV8ETR

    Grampa Spec Cockhead

  • Vice President
  • 3017 posts
  • Real Name:Allen
  • LocationArmadale WA
  • Car(s):RB30DET R32 Gts-t Sedan, Hilux SSR-G Surf 4x4
  • Bike(s):Hyosung GT250-R, My wife...
Step 22: Oil Pressure Sender.

1: Using threadseal or PTFE tape, fit and tighten the oil pressure sender unit.

Download Full Size Image

Posted Image

Posted Image


#24
2LV8ETR

2LV8ETR

    Grampa Spec Cockhead

  • Vice President
  • 3017 posts
  • Real Name:Allen
  • LocationArmadale WA
  • Car(s):RB30DET R32 Gts-t Sedan, Hilux SSR-G Surf 4x4
  • Bike(s):Hyosung GT250-R, My wife...
Whoohoo!!!!

Now it's time to install the engine.

The thread is open for comment and SERIOUS questions. Yes Mike, I have taken away your fun.

Posted Image


#25
NA_Goodness

NA_Goodness

    Resident Photographer

  • Paid Member - Donator
  • 3414 posts
  • LocationUnder The Bonnet, Behind The Camera
  • Car(s):1x Giant Fridge, 1x Smaller Freezer
  • Bike(s):Hopefully before January
Allen, hats off to you mate! A lot of work went into this thread, and is a great source of info for anyone! Will reread a few times
RM_Photography
RM_Photography on Facebook


RM_Photography!

Resident supplier of Garret, Sonic Performance, Turbosmart and all Bosch products.
MTQ Engine Systems

Practicality is an unfamiliar concept...

PUNCTUATION SAVES LIVES!!
-Lets eat Grandma
-Let's eat, Grandma!

#26
V8EATER

V8EATER

    The fearless leader thats born to cruise...

  • President
  • 2551 posts
  • Real Name:Bretto
  • LocationMiles in front of you....
  • Car(s):R32 GTS4 4 Door with RB26DETT, R32 GTS-T Coupe Drift Pig, HJ Prem Wgn, 1947 Holden Pontiac Silver Streak
  • Bike(s):None. Stick em up your ass! Im jinxed riding them.
Ive got a SERIOUS question. Were does the rag go in the picture below?

Posted Image


Posted Image
Go Hard Or Fuck Off Home. Kick Ass, Take No Prisoners!!!

All donations to West Coast Cruisers is very much appreciated


#27
Socrates

Socrates

    Bugatti Veyron Super Sport

  • Paid Member - Donator
  • 900 posts
  • Real Name:Socrates
  • LocationPerth, Australia
  • Car(s):1978 C210 Nissan Skyline 2400GT
  • Bike(s):2004 "30 years of BMX" Mongoose Mischief
pretty sure block both intake side holes for good measure.

#28
NA_Goodness

NA_Goodness

    Resident Photographer

  • Paid Member - Donator
  • 3414 posts
  • LocationUnder The Bonnet, Behind The Camera
  • Car(s):1x Giant Fridge, 1x Smaller Freezer
  • Bike(s):Hopefully before January
I think it's a joke Socs, cos Allen forgot to remove a rag from the turbo which caused a flat spot. Brett of all people will know where a rag would go to prevent something falling into the turbo :)
RM_Photography
RM_Photography on Facebook


RM_Photography!

Resident supplier of Garret, Sonic Performance, Turbosmart and all Bosch products.
MTQ Engine Systems

Practicality is an unfamiliar concept...

PUNCTUATION SAVES LIVES!!
-Lets eat Grandma
-Let's eat, Grandma!

#29
V8EATER

V8EATER

    The fearless leader thats born to cruise...

  • President
  • 2551 posts
  • Real Name:Bretto
  • LocationMiles in front of you....
  • Car(s):R32 GTS4 4 Door with RB26DETT, R32 GTS-T Coupe Drift Pig, HJ Prem Wgn, 1947 Holden Pontiac Silver Streak
  • Bike(s):None. Stick em up your ass! Im jinxed riding them.
lol you got it one Rhys. :D

Posted Image
Go Hard Or Fuck Off Home. Kick Ass, Take No Prisoners!!!

All donations to West Coast Cruisers is very much appreciated


#30
Socrates

Socrates

    Bugatti Veyron Super Sport

  • Paid Member - Donator
  • 900 posts
  • Real Name:Socrates
  • LocationPerth, Australia
  • Car(s):1978 C210 Nissan Skyline 2400GT
  • Bike(s):2004 "30 years of BMX" Mongoose Mischief
i saw SERIOUS in capitals and didn't think of the rag stuff up damn. haha
